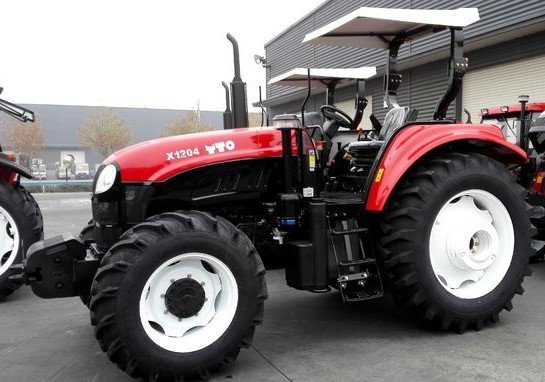

YTO X1204

UTILITY TRACTOR

YTO-X1204 is a heavy-duty, 4WD agricultural tractor from YTO (China’s largest tractor manufacturer), designed for large-scale farming and tough field conditions.

🌾 YTO-X1204 Tractor

Power Meets Precision in the Field

The YTO-X1204 is built for farmers who demand uncompromising strength, efficiency, and durability. With advanced engineering and user-focused design, this tractor delivers outstanding performance across a variety of agricultural tasks.

🚜 Key Features

  • Engine Power: 120 HP for heavy-duty operations
  • Drive System: 4WD with enhanced traction for challenging terrains
  • Transmission: Smooth gear shifting with multiple speed options for efficiency
  • Hydraulic System: High-lift capacity for handling implements with ease
  • Comfort Cabin: Spacious, ergonomically designed operator cabin with modern controls
  • Fuel Efficiency: Optimized engine performance ensures lower operational costs

✅ Benefits

  • Handles tillage, ploughing, harvesting, and transportation with ease
  • Strong and reliable build ensures long service life even in tough conditions
  • Designed for operator comfort, reducing fatigue during long working hours
  • Efficient fuel consumption, lowering the total cost of ownership

📊 Specifications

  • Model: YTO-X1204
  • Rated Power: 88.2 kW (120 HP)
  • Drive Type: 4×4 Four-Wheel Drive
  • PTO Power: 72.6 kW
  • Hydraulic Output: High-flow system for multiple applications
  • Weight: ~4,000 kg (depending on configuration)
  • Wheelbase: 2,800 mm for stability and balance

🌟 Why Choose YTO-X1204?

Backed by YTO’s trusted legacy in agricultural machinery, the X1204 combines power, reliability, and comfort — making it the ideal choice for medium to large-scale farmers who need a dependable workhorse.

📊 YTO-X1204 Detailed Technical Specifications

🔹 General

  • Model: YTO-X1204
  • Type: Agricultural Wheeled Tractor
  • Drive Type: 4×4 Four-Wheel Drive
  • Rated Power: 88.2 kW (120 HP)
  • PTO Power: ~72.6 kW
  • Weight (with ballast): 3,900 – 4,200 kg
  • Wheelbase: 2,800 mm
  • Overall Dimensions (L × W × H): ~4,500 × 2,100 × 2,950 mm
  • Ground Clearance: 450 mm (under front axle)

🔹 Engine

  • Type: Diesel, 4-stroke, turbocharged, water-cooled
  • Number of Cylinders: 4
  • Displacement: 6.75 L (approx.)
  • Rated Speed: 2,200 rpm
  • Fuel System: Direct injection
  • Cooling System: Water-cooled with radiator and thermostat control
  • Air Intake: Turbocharged + air filter system
  • Fuel Tank Capacity: 220 – 240 L

🔹 Transmission & Drive

  • Clutch: Dry, dual-stage, independent control
  • Gearbox: 16F + 8R (synchronized gears)
  • Speed Range: 2.5 – 35 km/h (forward), 2.0 – 15 km/h (reverse)
  • Differential Lock: Mechanical/automatic
  • Final Drive: Planetary gear reduction
  • Steering: Hydrostatic power steering

🔹 Power Take-Off (PTO)

  • Type: Independent PTO
  • PTO Speed: 540 / 1000 rpm (dual-speed)
  • Control: Independent hand lever
  • PTO Power Output: ~72.6 kW

🔹 Hydraulic System

  • Type: Open center with gear pump
  • Hydraulic Output (Flow): 55–60 L/min
  • Category: II / III (3-point hitch)
  • Lifting Capacity: 3,500 – 4,200 kg at hitch point
  • Remote Valves: 2 – 3 standard

🔹 Brakes & Safety

  • Service Brake: Hydraulic wet disc brakes
  • Parking Brake: Hand lever, mechanical
  • Emergency Shutoff: Standard engine kill switch

🔹 Axles & Wheels

  • Front Axle: 4WD heavy-duty with oscillation
  • Rear Axle: Reinforced planetary final drive
  • Tires (Standard):
    • Front: 14.9–24
    • Rear: 18.4–38

🔹 Optional Operator’s Cabin

  • Cabin Type: Enclosed, ergonomically designed
  • Features:
    • Air-conditioned / heater option
    • Adjustable suspension seat
    • Full digital dashboard & control panel
    • Low noise & vibration design
    • Safety-certified rollover protection structure (ROPS)

🔹 Electrical System

  • Battery: 12V, 120Ah
  • Alternator: 14V, 1.2 kW
  • Lighting: Front headlights, rear working lights, indicators, hazard lights
