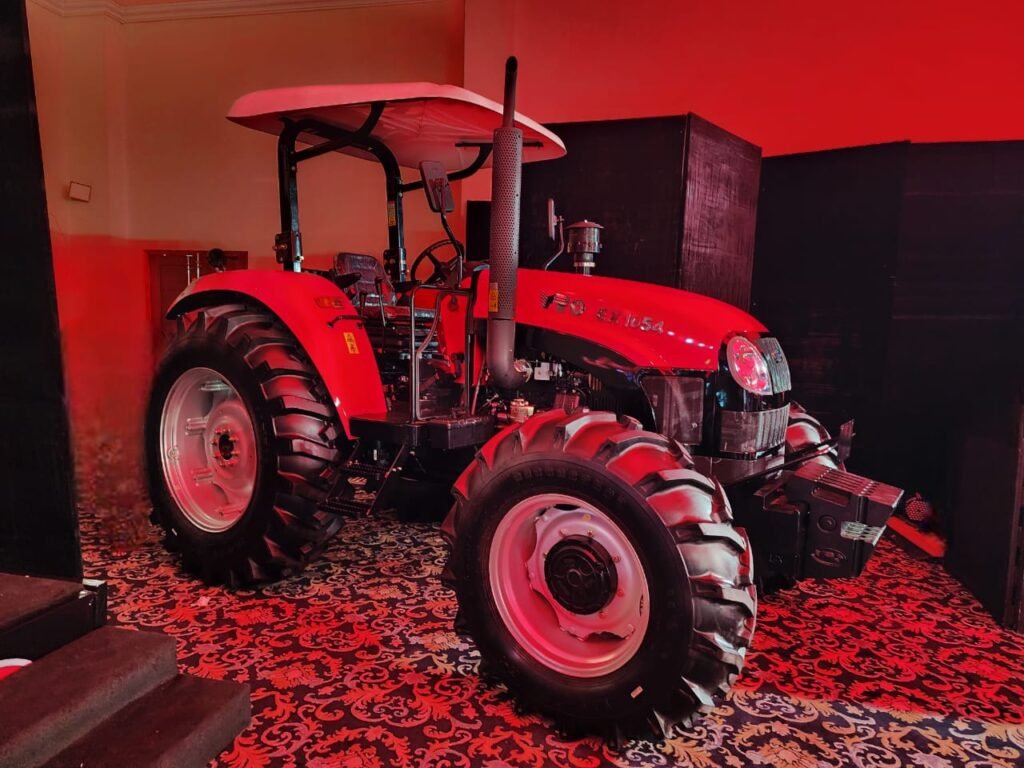

🚜 YTO-EX1054 Tractor
Reliable Power and Efficiency for Professional Farming
🌟 Key Features
- 105 HP Turbocharged Engine with high fuel efficiency
- 4WD Traction for excellent performance in tough field conditions
- 16 Forward + 8 Reverse Synchronized Transmission for flexible speed control
- High Lifting Capacity Hydraulics supporting multiple implements
- Independent PTO with dual speed (540/1000 rpm)
- Optional Comfort Cabin with AC, ergonomic seat, and ROPS design
📊 Technical Specifications
General
- Model: YTO-EX1054
- Type: Agricultural Wheeled Tractor
- Drive: 4WD
- Rated Power: 78 kW (105 HP)
- PTO Power: ~70 kW
- Operating Weight: 3,800 – 4,100 kg
- Wheelbase: ~2,650 mm
- Overall Dimensions: 4,350 × 2,050 × 2,900 mm
Engine
- Turbocharged, 4-cylinder diesel
- Displacement: ~6.0 L
- Rated Speed: 2,200 rpm
- Cooling System: Water-cooled
- Fuel Tank Capacity: ~200 L
Transmission & Drive
- Clutch: Dual-stage, independent
- Gearbox: 16 Forward + 8 Reverse, synchronized
- Speed Range (Forward): 2.5 – 35 km/h
- Differential Lock: Electro-hydraulic
- Steering: Hydrostatic power steering
PTO & Hydraulics
- PTO Type: Independent, dual speed (540/1000 rpm)
- PTO Power: ~70 kW
- Hydraulic Flow: 55 – 60 L/min
- 3-Point Hitch: Category II
- Lifting Capacity: 3,500 – 4,000 kg
- Remote Valves: 2 – 3 standard
Axles & Wheels
- Front Axle: Heavy-duty 4WD, oscillating
- Rear Axle: Planetary reduction
- Standard Tires: Front 13.6–24 / Rear 16.9–38
Brakes & Safety
- Service Brakes: Wet disc hydraulic
- Parking Brake: Mechanical
- Safety: ROPS cabin option, engine emergency shutoff
Electrical
- Battery: 12V, 120Ah
- Alternator: 14V, 1.2 kW
- Lighting: Front headlights, rear work lights, indicators, hazard lamps
Optional Operator’s Cabin
- Fully enclosed, ergonomic design
- Air-conditioning & heating
- Suspension seat
- Digital instrument cluster
- Low noise and vibration control
✅ Why Choose YTO-EX1054?
Designed for efficiency and operator comfort, the YTO-EX1054 is ideal for medium-scale farmers who require
fuel efficiency, durability, and high lifting capacity. From tillage to transport, it delivers consistent performance with low operating costs.
📞 Contact Us Today
Get pricing, availability, and financing options for the YTO-EX1054 Tractor.
