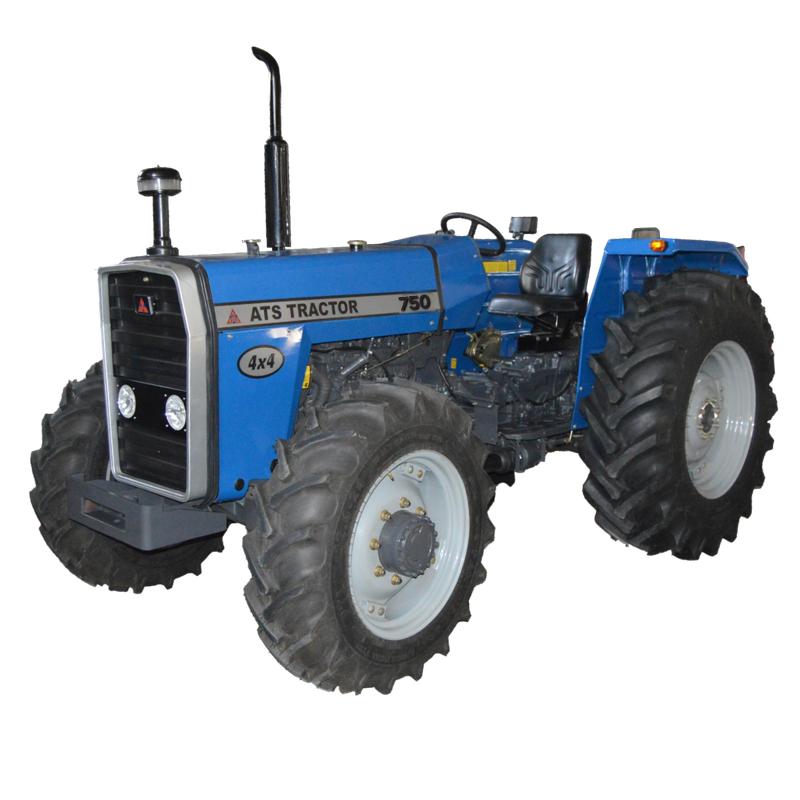

ATS Tractor 750 – 4WD Export Model
The ATS Tractor 750 (4WD Export Model) delivers 75 HP of reliable power, fuel efficiency, and robust performance. Designed for international markets, it is perfect for medium to heavy farming operations requiring strong pulling power, durability, and excellent traction.
Key Features
- Durable & highly fuel-efficient, low-noise engine
- Aerodynamic design with stylish wrapper & grill
- Oil cooler for effective engine cooling
- Bigger mid-mounted balancer for reduced vibrations
- Improved harness set with waterproof couplers
- Robust straddle rear axle with epicyclic reduction unit
- Heavy-duty 4WD front axle
- Deluxe suspension seat for operator comfort
- Hydrostatic power steering with smart steering wheel
- Efficient oil-immersed multi-disc braking system
- Improved traction with less tyre wear
- High draw bar pull capacity
Technical Specifications – ATS 750 (4WD)
| Engine Power | 75 HP @ 2200 RPM |
|---|---|
| Max Torque | 276 Nm @ 1400 RPM |
| PTO Power | 63 HP @ rated engine speed |
| Engine Type | Diesel, 4-Cylinder, 4.41 L |
| Bore x Stroke | 101 x 127 mm |
| Compression Ratio | 15.3:1 |
| Cooling System | Water Cooled, Thermostat Controlled |
| Fuel Tank Capacity | 108 Liters |
| Transmission | Sliding Spur, 8 Forward + 2 Reverse |
| Clutch | Dual, 305/254 mm |
| Steering | Hydrostatic |
| Brakes | Oil Immersed Multi Disc, Hydraulic Actuation |
| Hydraulic Pump | Reciprocating Ferguson Pump |
| Hydraulic Lift Capacity | 2145 kg (Cat I & II links) |
| PTO Speed | 540 RPM @ 1789 engine RPM |
| Shaft Diameter | 35 mm (6 splines) |
| Dimensions (L x W x H) | 3810 x 1970 x 2425 mm |
| Wheelbase | 2350 mm |
| Turning Circle | 8.5 m (with brakes) |
| Ground Clearance | 425 mm (under gearbox) |
| Weight | 2360 kg (gross) |
| Front Tires | 11.2-24 |
| Rear Tires | 16.9/14-30 |
| Battery | 12V, 118 Ah |
| Alternator | 45A / 2.8 kW |
