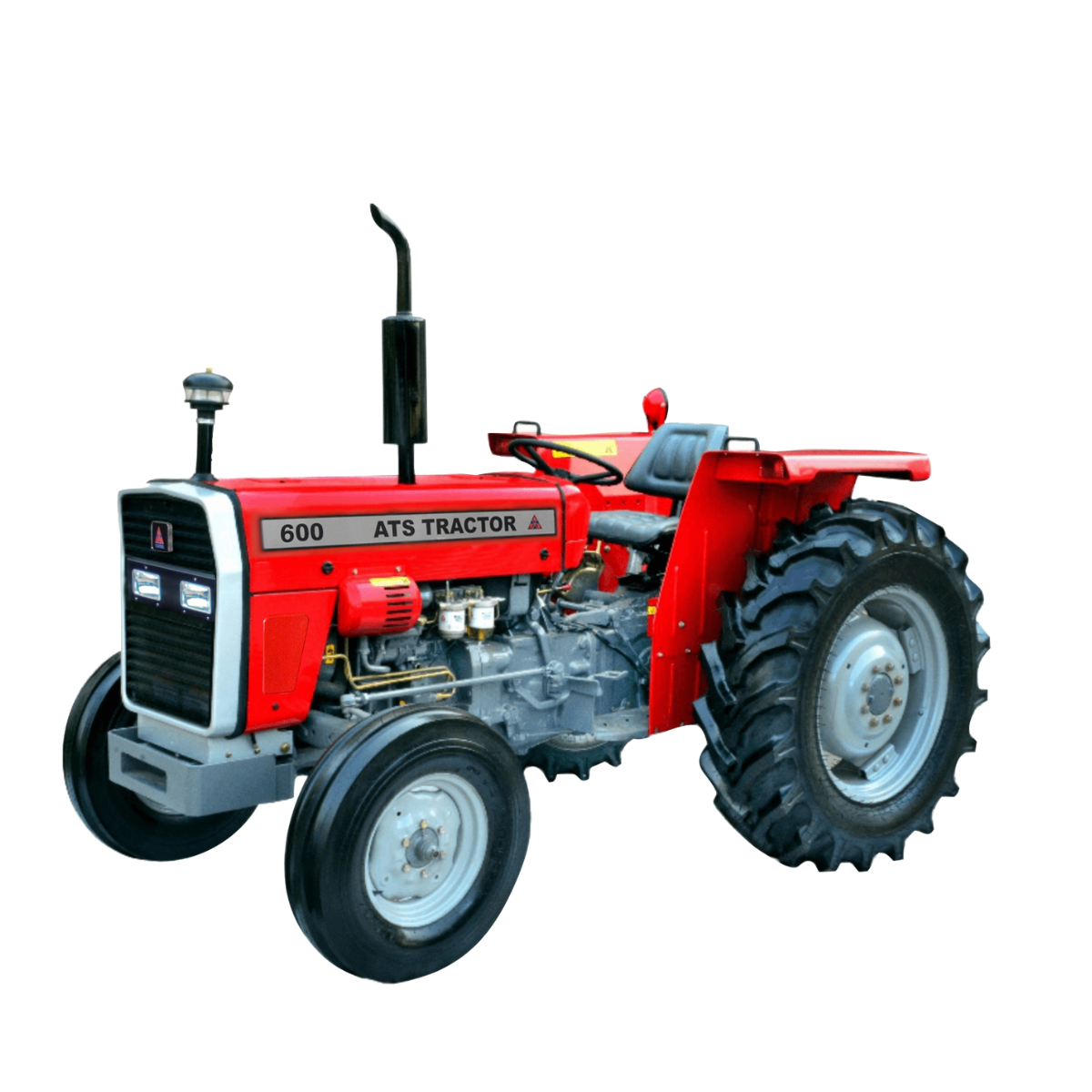

ATS Tractor 600 – 60 HP Export Model
The ATS Tractor 600 is a compact and efficient 60 HP Export Model, built to international standards. With its excellent fuel economy and reliable hydraulics, it is ideal for small to medium farms, orchards, and specialized agricultural operations.
Key Features
- Efficient 60 HP Power: Compact 3-cylinder engine delivering optimal performance
- Compact Design: Perfect for orchards, vegetable cultivation, and transport tasks
- Fuel Economy: Excellent efficiency with a large fuel tank capacity
- Reliable Hydraulics: 1,800 kg lift capacity for versatile implement operations
Ideal Applications
The ATS Tractor 600 is designed for compact and specialized operations worldwide, offering power and maneuverability for:
- 🌾 Small to medium farming
- 🍇 Orchard operations
- 🥕 Vegetable cultivation
- 🚜 Light tillage work
- 📦 Transport operations
- 🌍 Specialized farming tasks
Technical Specifications – ATS 600
| Engine Power | 60 HP @ 2250 RPM |
|---|---|
| Max Torque | 212 Nm @ 1600 RPM |
| PTO Power | 48 HP @ rated engine speed |
| Engine Type | Diesel, 3-Cylinder, Water Cooled |
| Displacement | 2.5 Liters |
| Bore x Stroke | 91.4 mm x 127 mm |
| Compression Ratio | 15.5:1 |
| Cooling System | Water Cooled with Thermostat |
| Fuel Tank Capacity | 47.5 Liters |
| Transmission | Sliding Spur, 8 Forward + 2 Reverse Gears |
| Clutch | Dual, 305 / 254 mm |
| Steering | Manual, Box Section Adjustable |
| Brake Type | Oil Immersed, Multi Disc |
| Hydraulic Pump | Reciprocating, Ferguson Pump |
| Hydraulic Lift Capacity | 2,170 kg at lower links |
| PTO Speed | 540 RPM @ 1789 engine RPM |
| PTO Shaft Diameter | 35 mm |
| No. of Splines | 6 |
| Overall Length | 3,260 mm |
| Overall Width | 1,890 mm |
| Overall Height | 2,220 mm (over exhaust) |
| Wheelbase | 1,892 mm |
| Turning Circle | 5.84 m (with brakes), 6.58 m (without brakes) |
| Ground Clearance | 400 mm (under gear box) |
| Weight | 1,920 kg (gross) |
| Front Tires | 7.50-16 (6 PR) |
| Rear Tires | 14.9/13-28 (6 PR) |
| Battery | 12V, 110 Ah |
| Alternator | 32 Amp |
