ATS Tractor 290 4×4 – Power Meets Precision
✅ Superior 4×4 traction for all terrains
✅ High-powered engine for heavy-duty work
✅ Robust design for long-lasting reliability

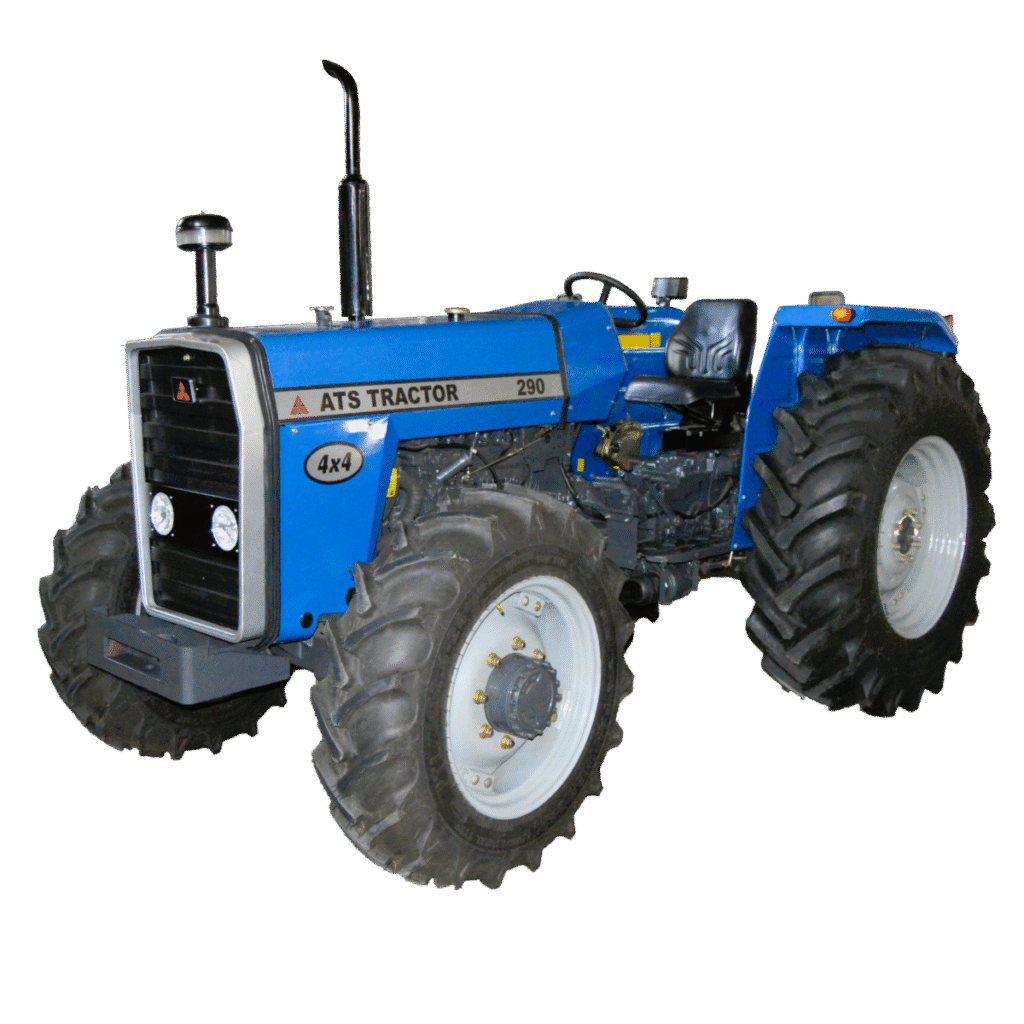

ATS Tractor 290 (4WD)
🚜 General Specification
- Nominal HP: 82 HP @ 2250 rpm
- Max Torque: 291 Nm @ 1600 rpm
- Max PTO Power: 67 hp @ 2200 rpm
- Overall Length: 3937 mm (155 in)
- Overall Width: 2032 mm (80 in)
- Height (with silencer): 2523 mm (99 in)
- Wheelbase: 2310 mm (90 in)
- Turning Radius: 4275 mm (168 in)
- Oil Capacity: 7.5 L (1.98 US gal)
- Coolant Capacity: 14 L (3.7 US gal)
- Fuel Tank Capacity: 87.0 L (23.8 US gal)
- Steering: Hydrostatic
⚙️ Engine
- Type: 440Tn (44.248)
- Cylinders: 4 – Inline
- Fuel: Diesel
- Fuel Injection: Direct
- Bore × Stroke: 101 × 127 mm (4 × 5 in)
- Displacement: 4.06 L, 4060 cc (248 cu.in)
- Aspiration: Natural
- Compression Ratio: 16.0:1
- Cooling System: Water Cooled
- Cold Starting Aid: Intake Heater Plug
- Governed Speed:
- Low Idle: 750 rpm
- High Idle: 2150 rpm (No Load)
- Rated: 2000 rpm (Full Load)
🔄 Transmission
- Type: Sliding Spur
- Gears: 8 Forward + 2 Reverse
- Speed:
- Forward: Up to 30 km/h (18.64 mph)
- Reverse: Up to 14.50 km/h (8.6 mph)
🏋️ Hydraulic Lift
- Type: Open Center
- Max Pressure: 207 Bar (3000 PSI)
- Max Lift Capacity: 2150 kg (4730 lbs)
- Clutch: Dual, 12 Inch
⚡ Power Take Off (PTO)
- Type: Live
- Speed: 540 rpm
- Shaft Diameter: 35 mm (1.38 in)
- Splines: 6
🛑 Braking System
- Brake Type: Oil-immersed Multi Disc
- Actuation: Foot Operated Dual Pedal
- Parking Brake: Hand Operated
- Differential Lock: Mechanical
🔌 Electric System
- Voltage: 12 V
- Battery Size: 100 Ah
- Lights: Halogen Headlights, Fender Mounted Rear Lamp, Turn Signals, Rear Combination Lights
- Indicators: Oil Pressure, Battery Charging, Fuel Level, Odometer, Water Temperature, Tachometer
🛞 Wheel & Tires
- Front Tire: 12.4-24 (12PR) Pressed
- Rear Tire: 18.4/15-30 (14 PR) Pressed
🛠️ Standard Equipment
- Front Weight Frame (without weight)
- Chain Stabilizer
- Check Chain
- Standard Tool Box (with set of tools)
- Cat I & II Balls
➕ Optional Equipment
- Front End Weights
- Swinging Drawbar
- Sun Canopy
- Pintal Hook
- 9 Hole Drawbar
- LED Headlights
- Rear Tire 13.6-38
🎨 Colour Options
- Red & Blue
